Design

This page outlines the design choices made for the APM. It helps to understand the device communication interfaces and state transitions.

APM Architecture

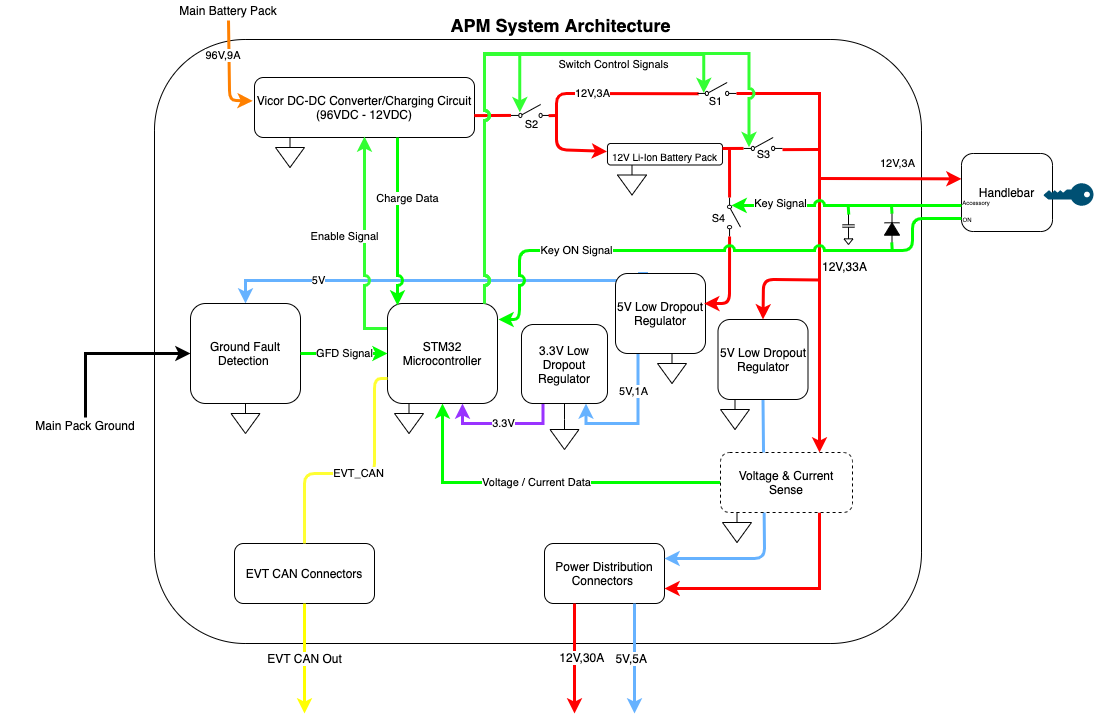

The APM Architecture is shown below. Some of the switch and net names are outdated, but in general this can show the overall architecture of the system. For more comprehensive documentation please see the APM confluence page at APM Confluence

../_images/Redundant_DEV1_APM_Architecture.png

APM State Control Flowchart

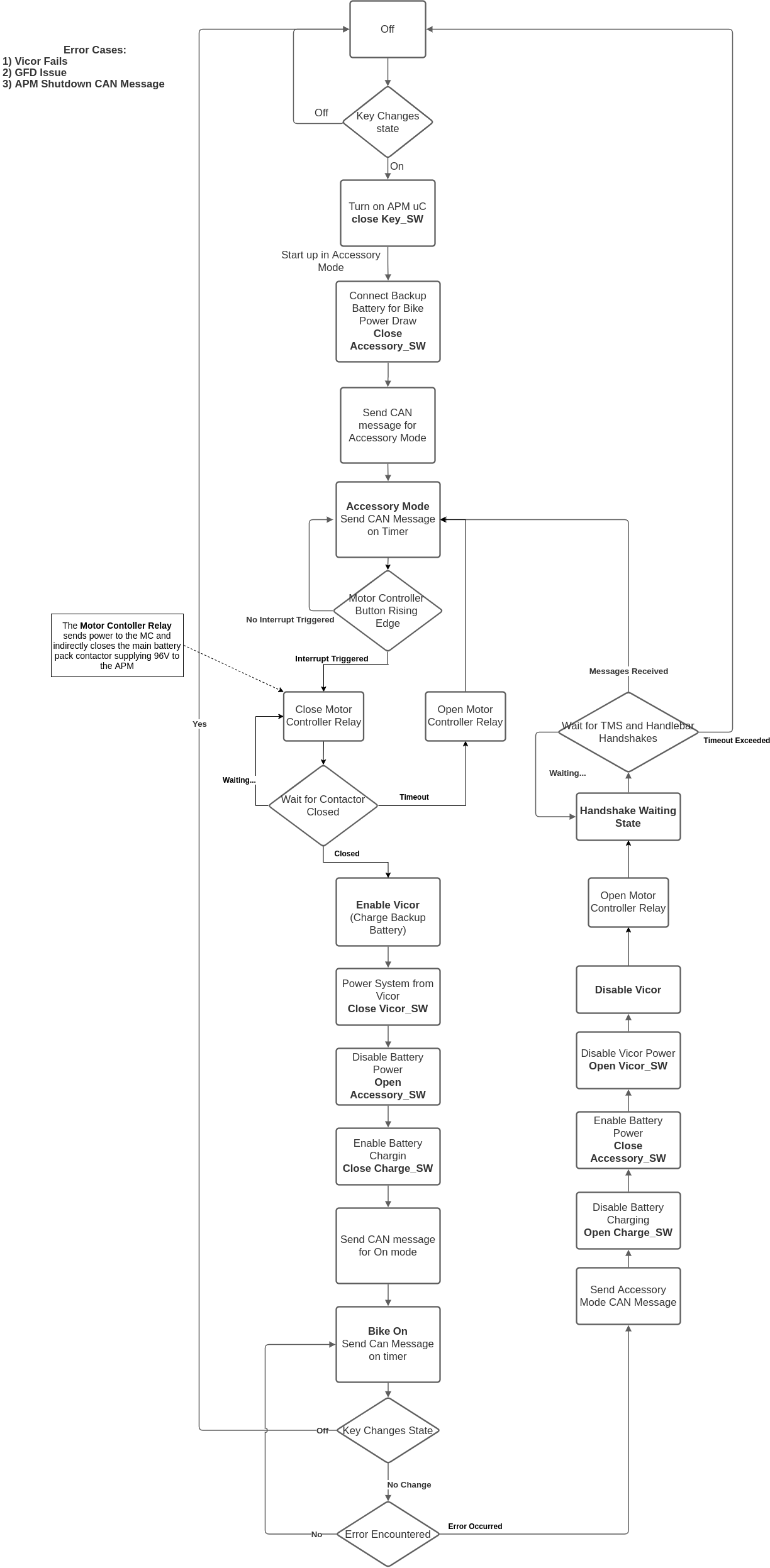

The APM State control is shown in the below figure. This denotes the state transitions

../_images/apm_state.png
